FBH presents new developments at Photonics West 2019: Customized diode lasers and UV LEDs – from chips to ready-to-use systems

19. December 2018

FBH presents new developments at Photonics West 2019

Customized diode lasers and UV LEDs – from chips to ready-to-use systems

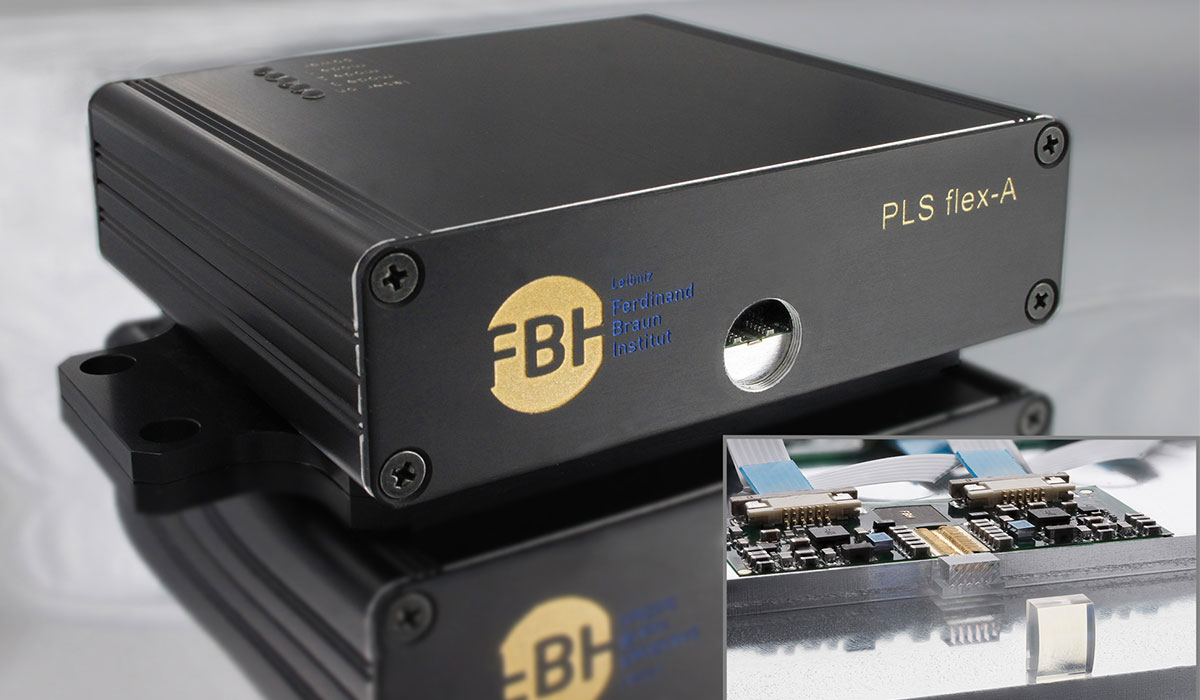

LiDAR-Pulslaserquelle für den Automobilbereich © FBH/P. Immerz; Inset: FBH/schurian.com

Automotive LiDAR pulse laser source: Inset shows high current laser driver with integrated ridge-waveguide laser diode. Picture: © FBH/P. Immerz; Inset: FBH/schurian.com

FBH introduces novel diode lasers and advancements at Photonics West 2019. Applications of the flexible and compact light sources include LiDAR, medicine, and (Raman) spectroscopy. Results and progresses in UV LEDs are presented jointly with the FBH spin-off UVphotonics.


The Ferdinand-Braun-Institut (FBH) presents novel developments and advancements of its diode lasers and UV light-emitting diodes (LEDs) at Photonics West 2019, San Francisco (USA) from February 5-7, 2019. At the German Pavilion, the institute showcases its full range of capabilities, from design through chips to modules and prototype systems. With 20 scientific contributions, FBH is also noticeably represented at the accompanying conferences (2-7 February). One focus of FBH’s R&D is on high-power diode lasers used, e.g., in materials processing both directly and as pump sources. Among others, FBH’s Director Günther Tränkle is giving an overview in his plenary presentation on recent design improvements that are boosting efficiency, peak power, brilliance, and range of emission spectra.


FBH exhibits at the booth comprise:
Stand-alone PC-controlled pulse laser sources
The FBH offers flexible laser sources delivering 200 ps to 20 ns pulses, allowing all systems to be flexibly assembled with diode lasers of further wavelengths and power ranges. For automotive LiDAR systems, for example, wavelength-stabilized laser diodes have been developed emitting 5 ns pulses with 40 W pulse power near 905 nm with good beam quality and up to 85°C. 3-emitter laser chips, whose emission can easily be optically combined into one single spot, yield up to 100 W. Chips can be delivered with FBH driver or as stand-alone PC-controlled laser source.
Another versatile and particularly sophisticated system is the efficient all-in-one pulse laser system PLS. It combines in-house developed optical and electronic semiconductor components, delivering ultra-short light pulses from 5-15 ps. It provides any desired repetition rate from the hertz to the MHz range; pulse peak performance reaches > 20 W output power.

Miniaturized fiber-coupled diode laser sources for biomedical and spectroscopy applications
The FBH has developed compact laser modules emitting watt-level power in the yellow spectral range, wavelengths from 532 nm to 590 nm. Based on a single package sized only 76 x 54 x 15 mm³, each solution is designed to ideally serve the specific application. They are available in both CW and pulsed operation for photo-coagulation treatments in ophthalmology or use in fluorescence spectroscopy and STED microscopy, respectively. The modules introduced here feature an all-semiconductor master-oscillator power-amplifier (MOPA) combined with frequency doubled (PPLN) crystals and provide polarization-maintaining fiber output options. Due to these new laser modules, the size of laser systems for medical applications will significantly shrink, from rack size to the dimensions of a shoe box.

Portable Shifted Excitation Raman Difference Spectroscopy (SERDS) – from chips to applications
For rapid SERDS measurements, FBH has demonstrated monolithic dual-wavelength diode lasers emitting light alternatingly on two slightly different wavelengths around 785 nm and also around 671 nm. These Y-branch DBR diode lasers with electrically controlled micro-heaters implemented above the gratings provide dual-wavelength laser emission and wave-length tuning over several nanometers – simply by changing the heater current. The sources enable fast alternating operation between both laser emission lines, thus investigations with reduced exposure times down to the millisecond range. Supplemented with battery power supply, electronic measurement equipment and a software interface, the systems can be used for in situ measurements. In-house developed, portable systems have already been successfully utilized for measurements on food, soil, plants, and human skin.
Visit us at Photonics West 2019, German Pavilion, booth 4545-49 (FBH) and 4545-50 (UVphotonics). Find an overview of the 20 FBH contributions to the accompanying conferences here: https://www.fbh-berlin.com/news-dates/dates/detail/fbh-at-photonics-west-2019.



Backgroundinformation – the FBH
The Ferdinand-Braun-Institut, Leibniz-Institut fuer Hoechstfrequenztechnik (FBH) researches electronic and optical components, modules and systems based on compound semiconductors. These devices are key enablers that address the needs of today’s society in fields like communications, energy, health, and mobility. Specifically, FBH develops light sources from the visible to the ultra-violet spectral range: high-power diode lasers with excellent beam quality, UV light sources and hybrid laser systems. Applications range from medical technology, high-precision metrology, and sensors to optical communications in space. In the field of microwaves, FBH develops high-efficiency multi-functional power amplifiers, and millimeter wave frontends targeting energy-efficient mobile communications as well as car safety systems. The FBH has a strong international reputation and ensures rapid transfer of technology by working closely with partners in industry and research. The institute has a staff of 290 employees and a budget of 33 million euros. It is part of the Forschungsverbund Berlin e.V., a member of the Leibniz Association and plays an active role in various networks.
www.fbh-berlin.de



Contact

Petra Immerz, M.A.
Communications Manager
Ferdinand-Braun-Institut
Leibniz-Institut für Höchstfrequenztechnik
Gustav-Kirchhoff-Straße 4
12489 Berlin
030 6392-2626
030 6392-2602
petra.immerz@fbh-berlin.de
www.fbh-berlin.de

Related News

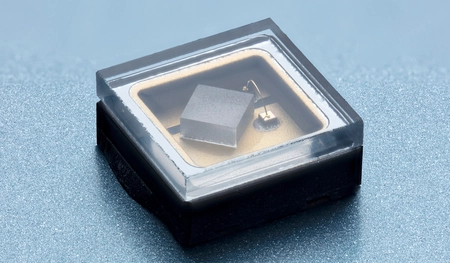

Hochleistungs-UV-LED bei 310 nm im AlN-Gehäuse ©FBH/schurian.com
UVphotonics and Ferdinand-Braun-Institut (FBH) with new UV LEDs at Photonics West 2019
Custom UV LEDs and modules with emission wavelengths realized from 320 nm to as low as 233 nm

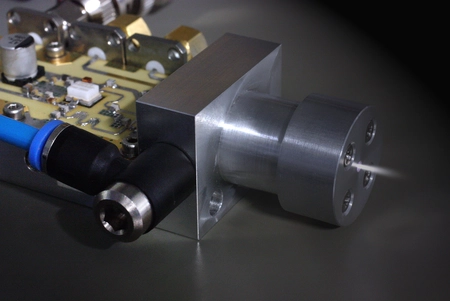

Plasmaquelle FBH © FBH/D. Wolf
