18. January 2018

Video Recorder Board replaces Frame Grabber, Display Controller and Text Generator

DIRIS-Boards minimize effort for development and production of devices comprising video visualization and recording

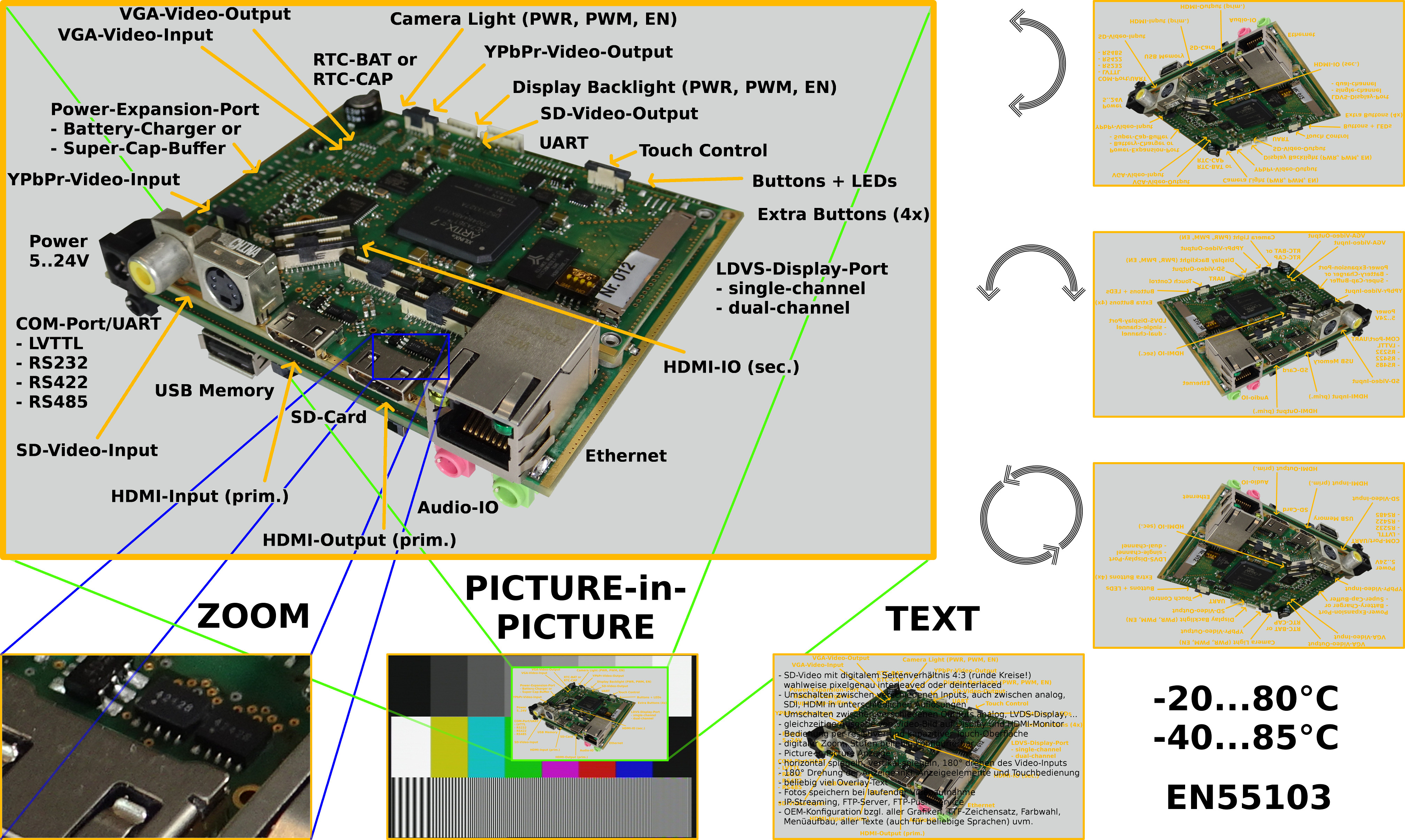

DIRIS B02-Board with various functions and interfaces
At the Embedded World Exhibition (Feb 27th to Mar 1st, 2018 in Nuremberg) X‑SPEX from Berlin/Germany presents the DIRIS video recorder boards with extended functions and new interfaces. Location in hall 1, booth 1-481, as usual. Different video inputs make DIRIS Boards suitable for multiple applications:
  • CVBS/S-Video, YPbPr, HDMI/DVI, HD-SDI, Camera Link, BCON
DIRIS Boards can do a lot more than just video recording, such as
  • Live view with < 100 ms delay to different outputs:
    CVBS/S-Video, YPbPr, VGA/RGB, Display (LVDS), HDMI
  • Control by resistiv and capazitiv touch panel
  • Horizontal mirror, vertical mirror, 180° turn of video inputs
  • Digital zoom (freely configurable steps)
  • Picture-in-Picture display
  • 180° turn of output incl. overlay elements and touch control
  • Multi line overlay text
  • EN + PWM für camera light and display backlight
  • Battery charge management for mobile devices
Thus, the DIRIS Board replaces multiple common componts, e.g. frame grabber, light control, display controller and text generator. This enables smaller devices with less complex manufacturing.: A flexible OEM configuration regarding all graphics, TTF font, colour selection, menu structure, all texts (different selectable languages, too) enables individual adaptation to requirements, branding and corporate identity of different OEM customers. In addition to configuration of the software, hardware assembly options enable flexible adaptation to customers specific product requirements. Thus, DIRIS Boards provide an ideal combination of reliablity and time-to-market of a standard product with the flexibility similar to customer specific developments. The core funktion of video recording is enhanced by multiple additional features:
  • Auto-Split – Automatic split of long recordings depending on time or size
  • Pre-Trigger – record up to 60 seconds of the past
  • Take photos during video recording
  • IP Streaming, internal FTP Server, push service to an external FTP server
Therefore, DIRIS-Boards are the ideal core component for all devices needing video recording and visualization. They enable minimal effort for development and production.
