28. January 2022

Catalogue of optical constants of 19 materials in the EUV range published

PTB launches database to support the development of optical components in semiconductor industry

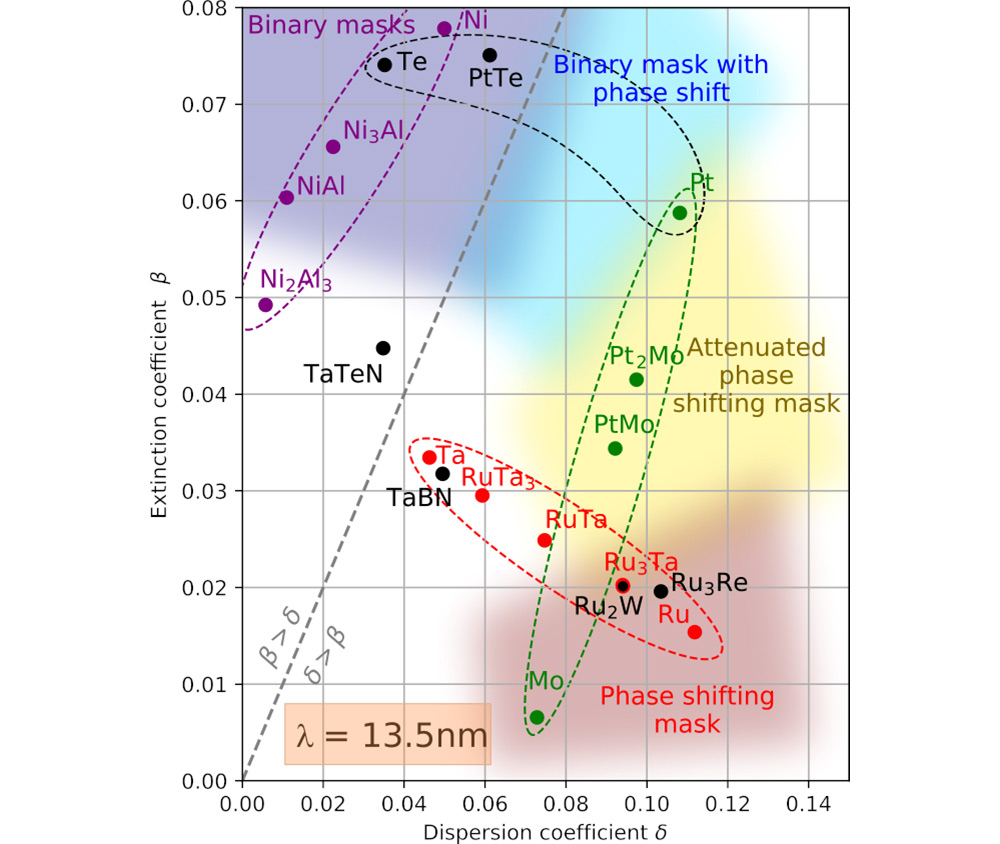

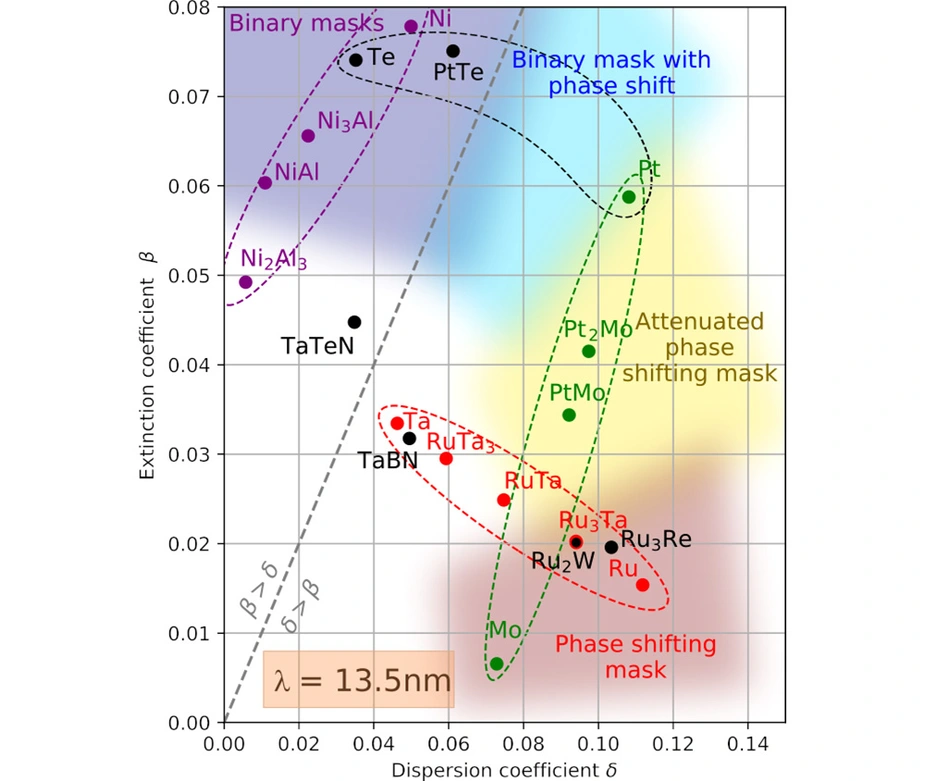

Fig. refractive index © PTB
The complex refractive index n=1-δ-iβ of different materials relevant for EUV lithograpghy at 13.5 nm wavelength. © PTB

The introduction of EUV lithography in semiconductor industry has significantly expanded the technologically relevant spectral range of electromagnetic radiation to include extreme UV radiation (EUV). For the development of optical components such as mirrors, gratings or photomasks in this spectral range, the optical properties of the relevant materials must be accurately known. For many chemical elements and especially for compounds and alloys, the existing databases usually only contain estimates based on some measured and theoretical values. In EU-wide research projects and long-term cooperations with leading research institutes and companies from the semiconductor industry, PTB has investigated the optical properties of technologically relevant materials, e.g. the optical properties of potential absorber materials for EUV photomasks. Using this data, such photomasks can be optimized to improve the optical contrast of the structures to be imaged on the semiconductor chips.

The results for a first set of materials have now been published and are thus available for technology development. For quick and easy access, they have been made freely accessible as the cornerstone of a database that is to be constantly expanded with new results.

Publication:

R. Ciesielski, Q. Saadeh, V. Philipsen et al.
Determination of optical constants of thin films in the EUV
Appl.Opt. 61 (2022). DOI: doi.org/10.1364/AO.447152

Link to database: www.ocdb.ptb.de


Contact:

Physikalisch-Technische Bundesanstalt
Richard Ciesielski
Division 7.14: EUV Nanometrology
Email: Richard.Ciesielski(at)ptb.de
www.ptb.de/cms/en/ptb/fachabteilungen/abt7/fb-71/ag-714.html



Press release PTB, 19 January 2022

Microsystems / Materials Research Photonics / Optics

Related News

  • Agreement on EUV reflectometry between PTB and ZEISS extended until the end of 2029

    Cooperation strengthens the European technology network
  • © PTB

    Detection of anisotropy in the optical constants of quartz crystals for soft X-rays

    In the PTB, methods for determining the optical constants of materials with synchrotron radiation have been established
  • © PTB/HZB

    Experiment reveals new options for synchrotron light sources

    SSMB source combines advantages of synchrotron light with the benefits of FEL pulses

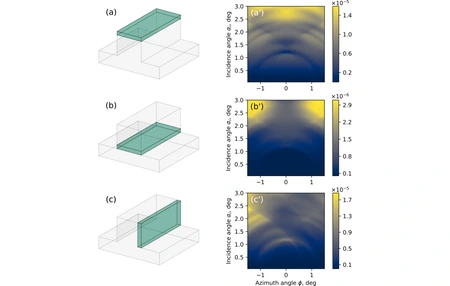

  • Simulation of GIXRF maps © PTB
